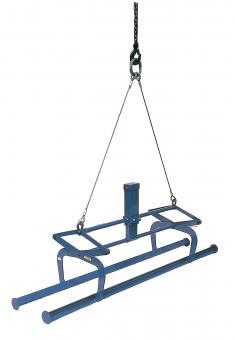

AUTOMATIC BATCH LIFTING CLAMP for Concrete bank block (with Wire rope and Ring)KBC500WA

  • AUTOMATIC BATCH LIFTING CLAMP for Concrete bank block (with Wire rope and Ring)

Features

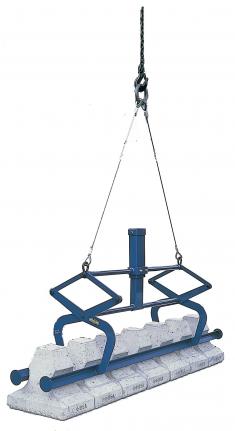

  • The tongs are designed for reinforced concrete bank blocks having necks, handling 7 reinforced concrete bank blocks together in one batch.
  • This automatic (attaching and detaching) system can speed the required time for the work much more than conventional hand-operated tongs.
  • The clamping force increases in proportion to the weight of the concrete bank-blocks.
  • The simple mechanism of these tongs assures smooth and highly efficient operation.

View Catalogue

Specifications

Material High Tensile Steel
Finish Blue baked-on finish
Product Specifications Capacity: 500kg
Product Specifications Clamp Range: 60~270mm
