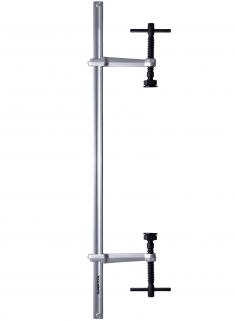

SUPER SETTER Rail TypeFCW27120 / 30140 / 40175

Features

Not only for tightening or griping inside but also stretching outside.
The final turn at hexagonal head with a wrench is allowed, which ensures even securer tightening.
Adaptor is allowed up to 35°tilted clamping.
V-shape adaptor is available as an option.

Material	Special Alloy Steel
Finish	Nickel Chrome Plate
Product Specifications	Clamp Range: 0～750 mm
Product Specifications	Maximum clamping force at 150mm: 10 / 12 / 22 kN
Product Specifications	Rail size: 27x13 / 30x15 / 40x20mm, Full length: 1,000mm
Product Specifications	Depth: 120 / 140 / 175mm
